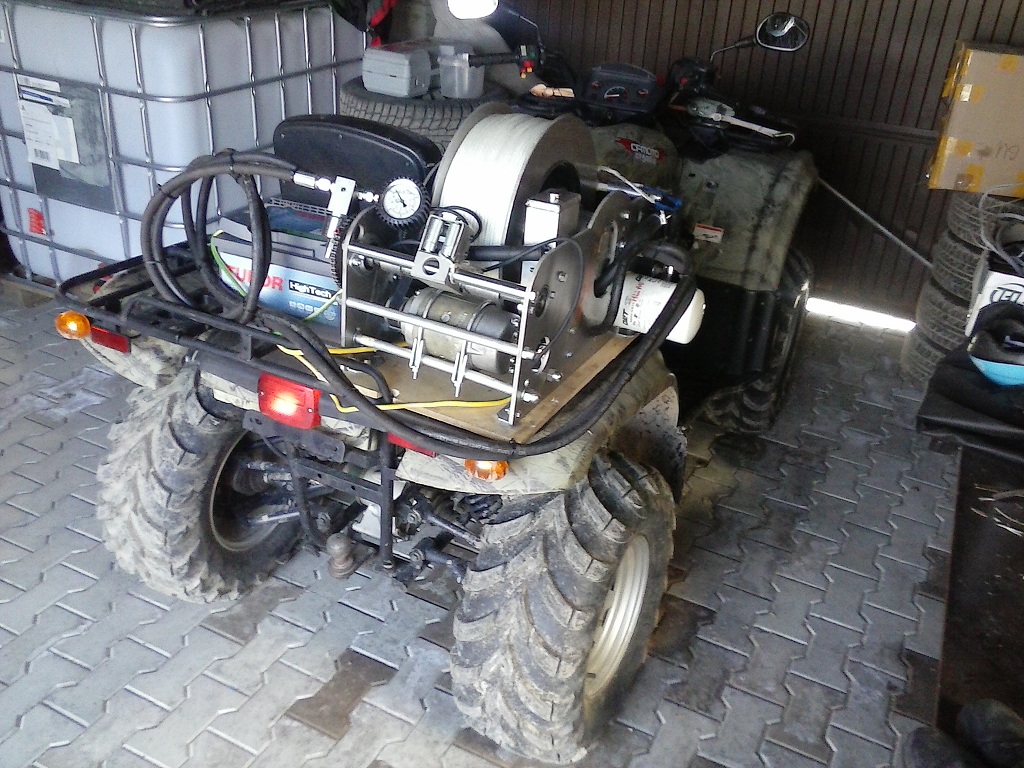

Hydraulic payout winch in ATV

RU

Hydraulic payout winch"Eladia" for towing Paragliders & Hang Gliders above land and water

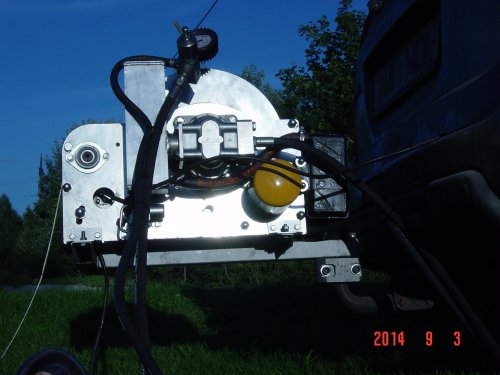

Winch payout hydraulic for paraglider in caravan Hydraulic payout winch towing Dyneema Line paraglider
winch specifications
Weight 40 kg
Dimensions prepared to work 600 x 500 x 400mm
Mounting type Flat surface or tow hitch(caravan) using mounting bracket
Towing power 30-200 kg
Motor power(rewinder) 1.7 kWt 12V
Rewind Speed 1050 meters in 1 min
Remote control hose length 2.5m
Power cable length ---
Recommended battery capacity >50 Ah
cut system - guillotin ---
Hydraulic pump working life 100000 tows
Drum capacity
dyneema line Ø2.5mm 1800m (BS 740kg 260m/kg 0.26€/m +Vat)
dyneema line Ø3.0mm 1300m (BS 1050kg 205m/kg 0,33€/m +Vat)
dyneema line Ø4.0mm 1000m (BS 1250kg 153m/kg 0.40€/m +Vat)

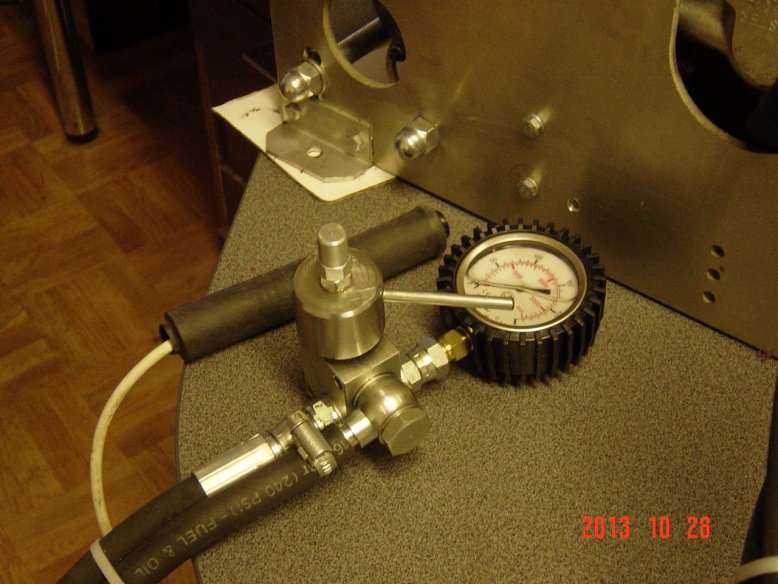

Force regulation:

Hydraulic payout winch Eladia

Over tension setting you choose what max tension you want the winch will release and then pick up when setting is reached so the driver can never over tension

Price: 1300 € (without line)

Nikolai Selivanov
Tallinn city Estonia (European Union)
selivan@hot.ee
+372 5524762
